Design and Manufacture
|
結構長度
|
法蘭尺寸
|
壓力-溫度
|
試驗-檢驗
|
|

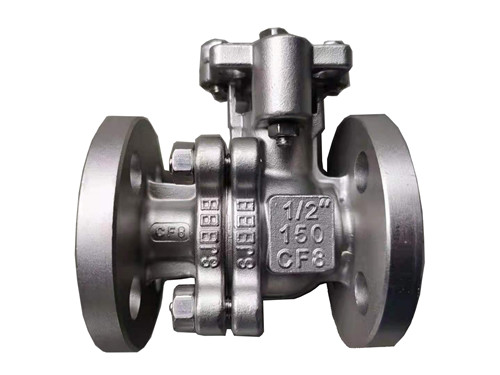

對分式法蘭球閥
|
BS5351
|
ANSI B16.10
|
ANSI B16.5
|
ANSI B16.34
|
API1598
|
|
固定式法蘭球閥
|
API 6D
|
API16D
|
|
|
■性能規范：
|
|
公稱壓力PN(Lb)
|
強度試驗
|
水密封試驗
|
氣密封試驗
|
|
MPa
|
Lbf/in2
|
MPa
|
Lbf/in2
|
MPa
|
Lbf/in2
|
|
150
|
3.1
|
450
|
2.2
|
315
|
0.5-0.7
|
60-100
|
|
300
|
7.8
|
1125
|
5.6
|
815
|
|
600
|
15.3
|
2225
|
11.2
|
1630
|
|
|
■主要零件材料：
|
|
閥體
|
WCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
球
|
2Cr13
|
304
|
316
|
304L
|
316L
|
|
閥桿
|
2Cr13
|
304
|
316
|
304L
|
316L
|
|
閥座
|
聚四氟乙烯 不銹鋼/聚四氟乙烯 對位聚苯
|
|
墊片
|
聚四氟乙烯 不銹鋼/柔性石墨 齒型墊片
|
|
閥桿座
|
聚四氟乙烯 不銹鋼/柔性石墨
|
|
填料
|
聚四氟乙烯 增強柔性石墨
|
|
填料壓蓋
|
WCB
|
304
|
316
|
304L
|
316L
|
|
溫度
|
≤150
|
|
介質
|
水 油品 蒸汽 醋酸類 硝酸類
|
|
|
■主要外形尺寸：
|
|
DN
|
150Lb 150LbP 150LbR
|
重量Weight
|
|
mm
|
in
|
L
|
D
|
D1
|
D2
|
b
|
n-φd
|
H
|
D0
|
|
15
|
1/2
|
108
|
89
|
60.5
|
35
|
11.5
|
4-15
|
59
|
130
|
2.2
|
|
20
|
3/4
|
117
|
98
|
70
|
43
|
11.5
|
4-15
|
63
|
130
|
3.0
|
|
25
|
1
|
127
|
108
|
79.5
|
51
|
12
|
4-15
|
75
|
160
|
4.5
|
|
32
|
11/4
|
140
|
117
|
89
|
64
|
13
|
4-15
|
75
|
160
|
5.5
|
|
40
|
11/2
|
165
|
127
|
98.5
|
73
|
15
|
4-15
|
95
|
230
|
7.0
|
|
50
|
2
|
178
|
152
|
120.5
|
92
|
16
|
4-19
|
107
|
230
|
9.5
|
|
65
|
11/2
|
190
|
178
|
139.7
|
105
|
18
|
4-19
|
142
|
400
|
15
|
|
80
|
3
|
203
|
190
|
152.5
|
127
|
19
|
4-19
|
152
|
400
|
19
|
|
100
|
4
|
229
|
229
|
190.5
|
157
|
24
|
8-19
|
178
|
700
|
33
|
|
125
|
5
|
256
|
254
|
215.9
|
186
|
24
|
8-22
|
252
|
1100
|
58
|
|
150
|
6
|
394
|
279
|
241.5
|
261
|
26
|
8-22
|
272
|
1100
|
93
|
|
200
|
8
|
457
|
343
|
298.5
|
270
|
29
|
8-22
|
342
|
1500
|
160
|
|
250
|
10
|
533
|
406
|
362
|
324
|
31
|
12-25
|
345
|
1500
|
200
|
|
300Lb 300LbP 300LbR
|
|
15
|
1/2
|
140
|
95
|
66.5
|
35
|
14.3
|
4-15
|
59
|
130
|
2.5
|
|
20
|
3/4
|
152
|
117
|
82.5
|
43
|
15.9
|
4-19
|
63
|
130
|
3.5
|
|
25
|
1
|
165
|
124
|
89
|
51
|
17.5
|
4-19
|
75
|
160
|
5.5
|
|
32
|
11/4
|
178
|
133
|
98.5
|
64
|
19.1
|
4-19
|
75
|
160
|
4.0
|
|
40
|
11/2
|
190
|
156
|
114.5
|
73
|
20.7
|
4-22
|
95
|
230
|
10.0
|
|
50
|
2
|
216
|
165
|
127
|
92
|
22
|
8-19
|
107
|
230
|
14.5
|
|
65
|
11/2
|
241
|
190
|
149
|
105
|
25
|
8-22
|
142
|
400
|
23.5
|
|
80
|
3
|
283
|
210
|
168
|
170
|
29
|
8-22
|
152
|
400
|
30
|
|
100
|
4
|
305
|
254
|
200
|
157
|
32
|
8-22
|
178
|
700
|
55
|
|
125
|
5
|
381
|
279
|
235
|
186
|
35
|
8-22
|
252
|
1100
|
81
|
|
150
|
6
|
403
|
318
|
270
|
216
|
37
|
12-22
|
272
|
1100
|
118
|
|
200
|
8
|
502
|
381
|
330
|
270
|
41
|
12-25
|
342
|
1500
|
200
|
|
250
|
10
|
568
|
444
|
387.5
|
324
|
48
|
16-29
|
345
|
1500
|
250
|
|
600Lb 600LbP 600LbR
|
|
15
|
1/2
|
165
|
95
|
66.5
|
35
|
14.3
|
4-16
|
59
|
160
|
7.5
|
|
20
|
3/4
|
190
|
117
|
82.5
|
43
|
15.9
|
4-19
|
63
|
160
|
10.5
|
|
25
|
1
|
216
|
124
|
89
|
51
|
17.5
|
4-19
|
75
|
230
|
14.5
|
|
40
|
11/2
|
241
|
156
|
114.5
|
73
|
22.3
|
4-22
|
95
|
400
|
18.5
|
|
50
|
2
|
292
|
165
|
127
|
92
|
25.4
|
8-19
|
107
|
700
|
25
|
|
100
|
4
|
432
|
273
|
216
|
157.2
|
38
|
8-25
|
178
|
1100
|
76
|
|
125
|
5
|
508
|
330
|
267
|
186
|
44.5
|
8-29
|
25.5
|
1100
|
102
|
|
